Product Information
Product Specification
24mm Face Ceiling Grid, #T24.Jay.4838 (H/D, Seismic)
Main Tee and Cross Tees are a double web design, roll formed from HDGS with prepainted galvanized steel cap.

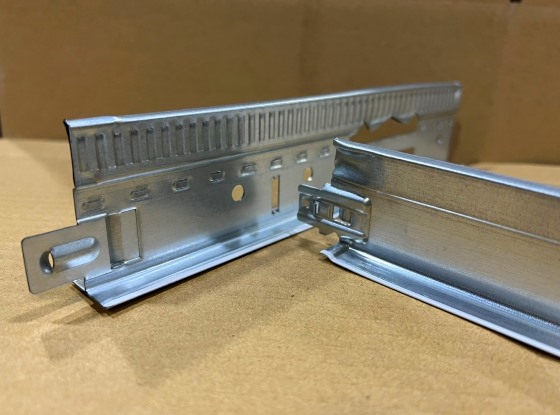

Cross Tee Interlocking design: “JAY” stab, the stronger of two tongues interlocking design, is the unique design applied on major robust Tee systems including T40, T24 & T15 ceiling grid.
|
|
T24 “Jay” Cross Tee Ends, 24mm face x 38mm (h)
|
|
|
T24.Jay.4838 M.T. & C.T. – white cap black cap (on request) |
Grid Type: 24mm Face Grid “Jay” Clip # T24.Jay.4838
|
|
Width x Height |
Length |
Thickness |
Packaging |
ASTM TEST |
|
Main Tee |
24 (w) x 48 (h) |
3.6m, 12’ |
0.35 |
25 |
24.9 kg/m* |
|
Cross Tee |
24 (w) x 38 (h) |
1.2m, 4’ |
0.35 |
50 |
≧ 80, |
|
Short C.T. |
24 (w) x 38 (h) |
0.6m, 2’ |
0.35 |
75 |
≧ 80, |
*hanger wire span on M.T. L=1200mm, main tee equivalent uniform load is tested according to ASTM C635 (Loading Capacity)
Cross tee Tension/Compression is tested according to ASTM E580. (Seismic Grade)
