Product Information
Main Tee and Cross Tee are cold rollformed from Hot-Dipped Galvanized Steel finished with pre-painted color coating. Products are produced by fully automatic machine controlling the production of straight material to minimal tolerance ensuring consistent dimensioning of the grid module after installation.
Product Specification

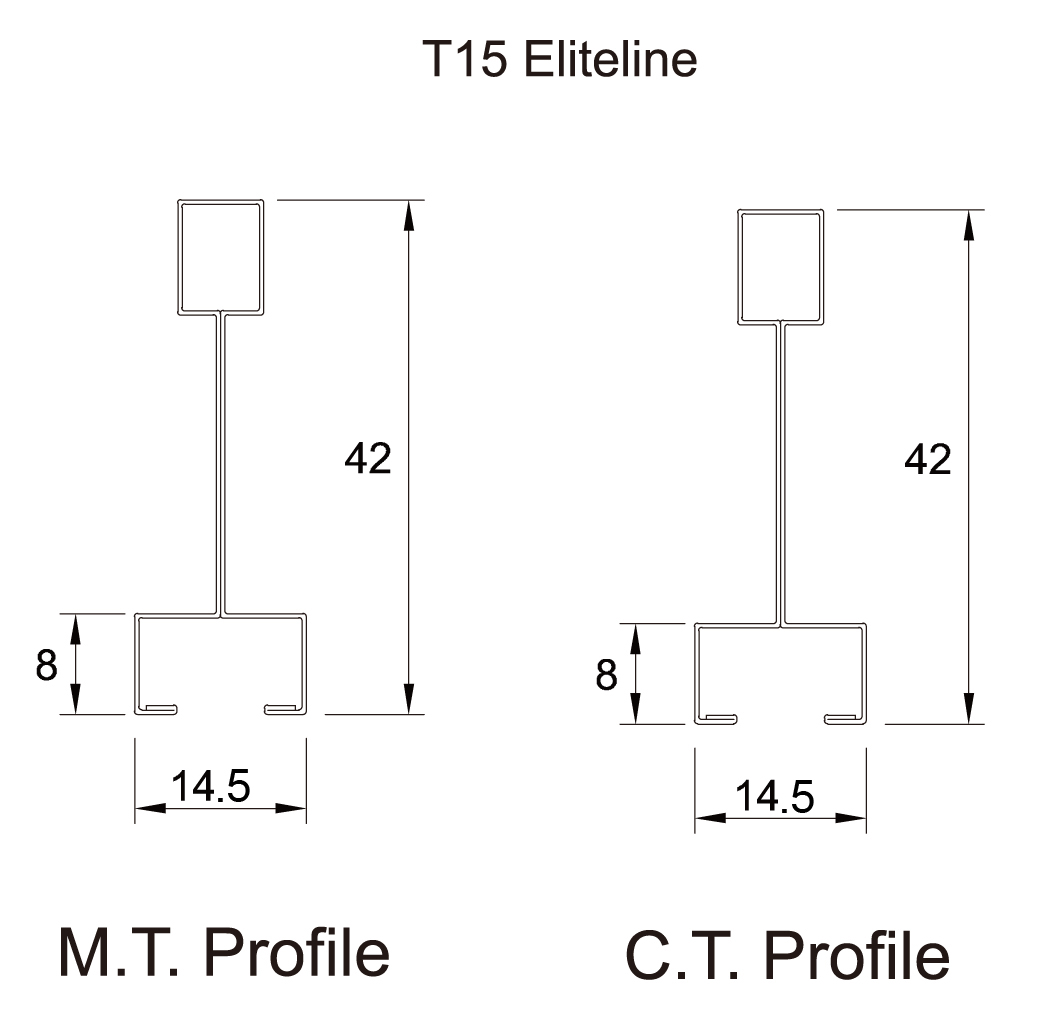

T15.Eliteline.4242 --- 2’x2’ (0.6Mx0.6M) ceiling grid module
Description | Packing | Container load | |||
Item | Imperial | Metric |
Width x Height (mm) |
Pieces/box |
Boxes/20’ (max.) |
Main Tee | 12FT | 3.6M | 14w x 42h | 20 | 203 |

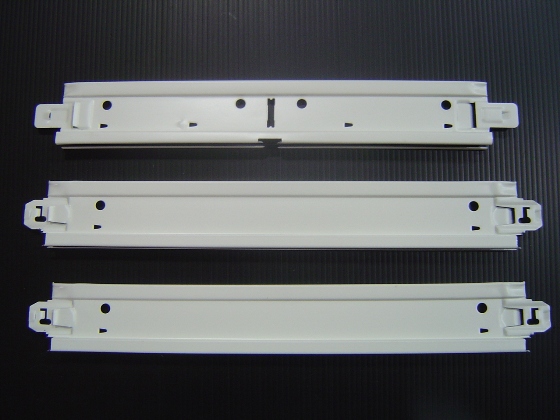

Cross Tee | 4FT | 1.2M | 14w x 42h | 40 | 609 |
Cross Tee | 2FT | 0.6M | 14w x 42h | 40 | 609 |

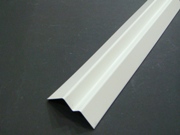

Wall Angle | 10FT | 3.0M | 18 x 18 | 40 | 110 |
Made of color pre-painted material for outside web and inside web,
Available in W/W (white/white), W/B (white/Black), S/B (Silver/Black) color
M.T. & C.T. thickness: 0.35mm, 0.4mm
T15.Eliteline.4242 --- 2’x2’, 2’x1’, 1’x1’ ceiling grid module
Description | Packing | Container load | |||
Item | Imperial | Metric |
Width x Height (mm) |
Pieces/box |
Boxes/20’ (max.) |
Main Tee | 10FT | 3.0M | 14w x 42h | 20 | 317 |
Cross Tee | 4FT | 1.2M | 14w x 42h | 40 | 475 |
Cross Tee | 2FT | 0.6M | 14w x 42h | 40 | 317 |
Cross Tee | 1FT | 0.3M | 14w x 42h | 80 | 317 |
Wall Angle | 10FT | 3.0M | 18 x 18 | 40 | 90 |
Made of color pre-painted material for outside web and inside web,
Available in W/W (white/white), W/B (white/Black), S/B (Silver/Black) color
M.T. & C.T. thickness: 0.35mm, 0.4mm
Loading-carrying capacity
0.35mm thickness Main Tee, 4’ span: 11.92kg/M (Light duty)
Tension & Compression
1. 0.35mm thickness - Tension/Compression: M.T. 144/349kgf, C.T. 92/358kgf (Severe Seismic grade)
2. 0.40mm thickness - Tension/Compression: M.T. 173/392kgf, C.T. 90/434kgf (Severe Seismic grade)

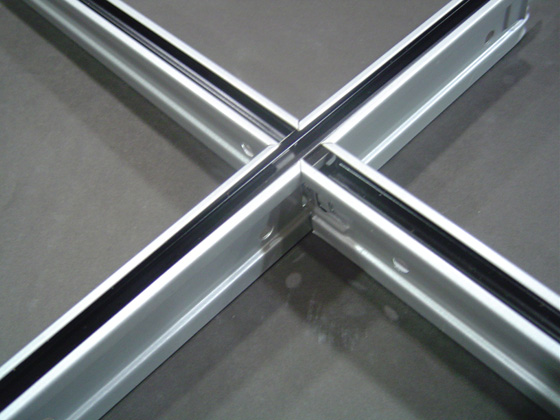

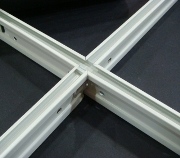

Suspension Grid Options

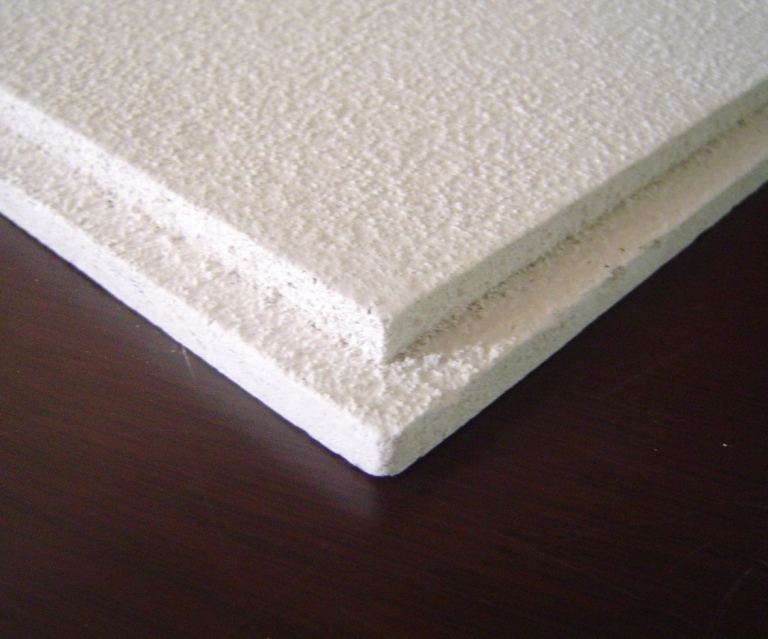

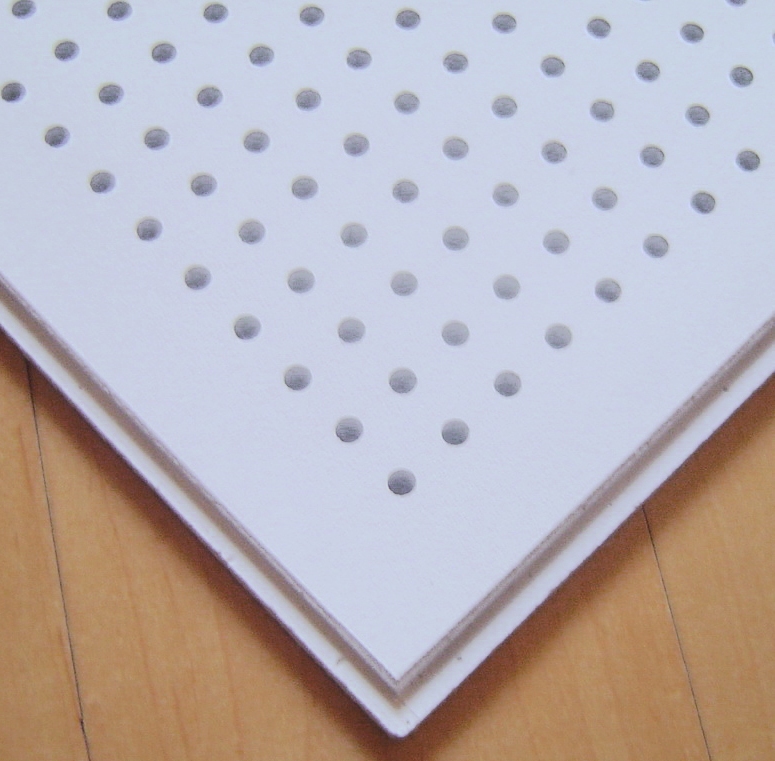

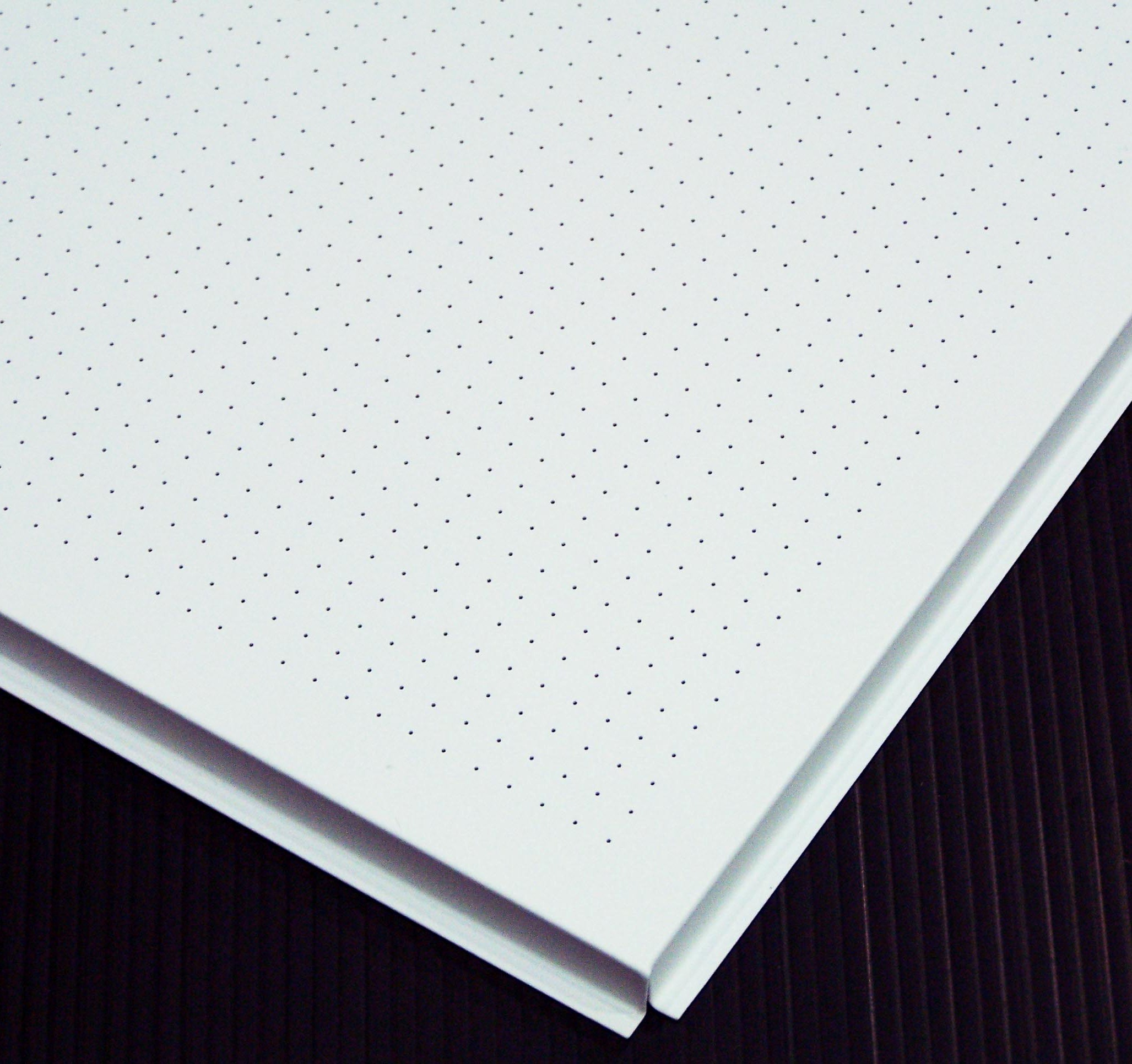

Ceiling Tile Options

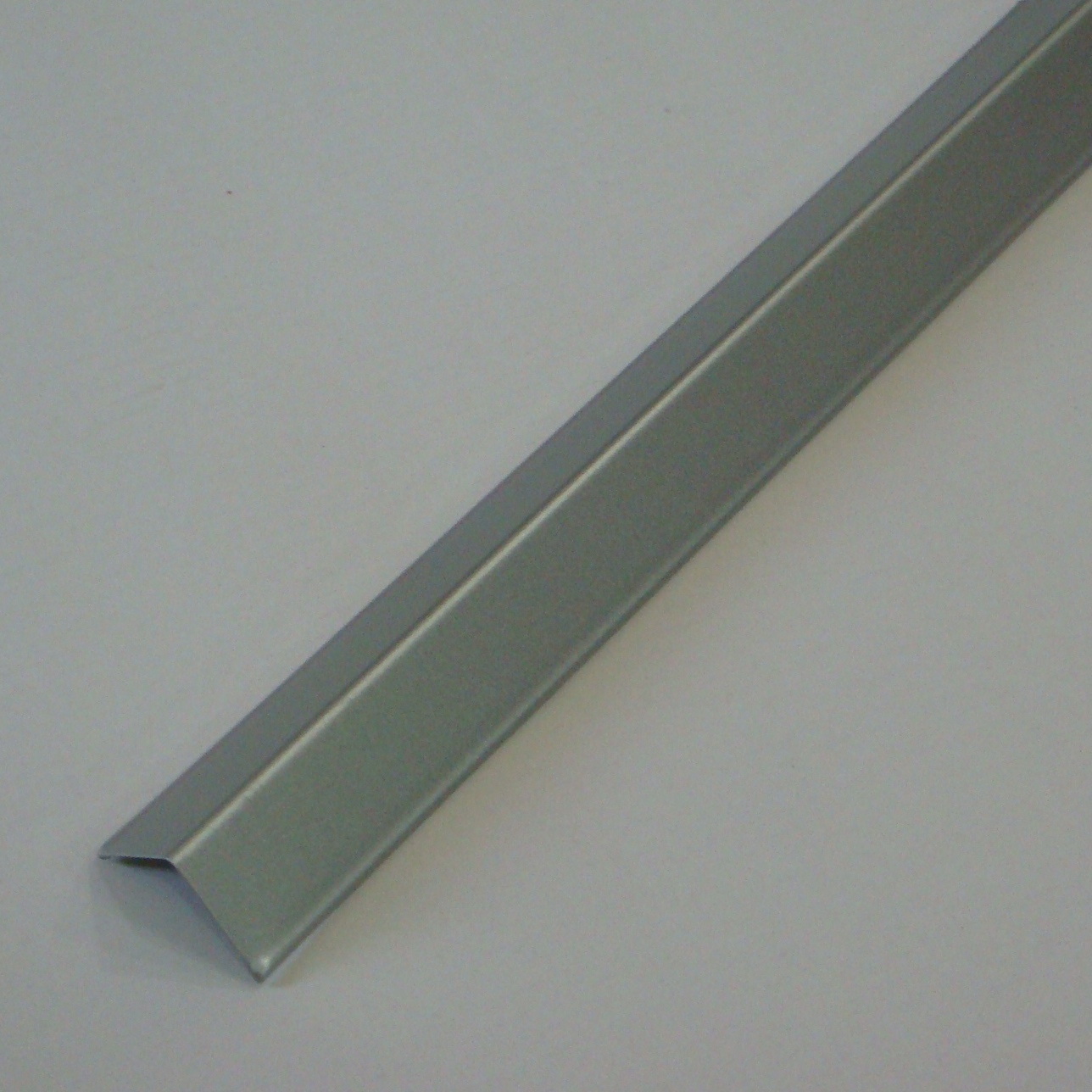

Wall Angle Options
